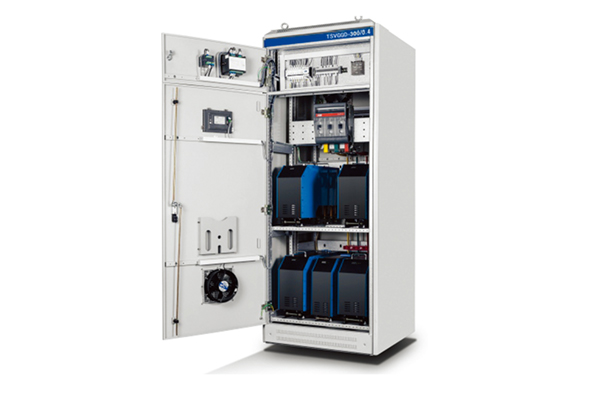

TSVGGD Dynamic filtering compensation device TSVGGD

Interested In This Machine?REQUEST A QUOTE

Quick Details

Function of low voltage automatic reactive power compensation and harmonic elimination device in electric power supply system, is improving power factor of power grid, reduce the wastage of power supply transformer and transmission circuit, improve  efficiency of power supply and power supply environment.So the reactive power compensation device in electric power supply system has an indispensable important position, if you choose a reasonable compensation device, can minimize network loss and improve the grid quality.

Product features
1. Reactive power controller (reactive current), with manual/automatic control;
2. Automatic control has circular switch, code awitch, order switch way and so on;
3. Real time monitoring system voltage, current, power factor, compensating state parameters;
4. Switch time delay 0-120s is adjustable, special equipment for switch cycle can be 1s;
5. With perfect overvoltage, undervoltage, overcurrent, short circuit, misoperation and other protection measures;
6. Effectively avoid resonance capacitance, shunt 20% - 30% characteristic harmonic current;
7. Low investment cost, mature technology, stable performance and suit most of the low voltage compensation.

Quick Details

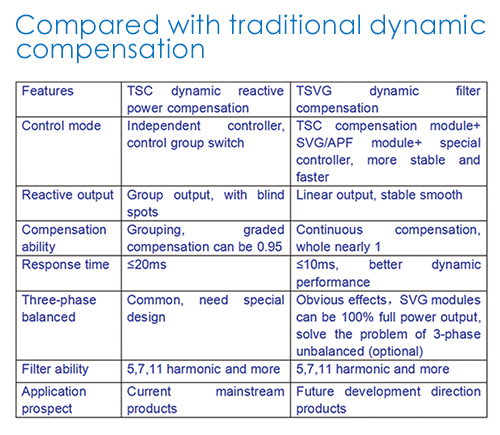

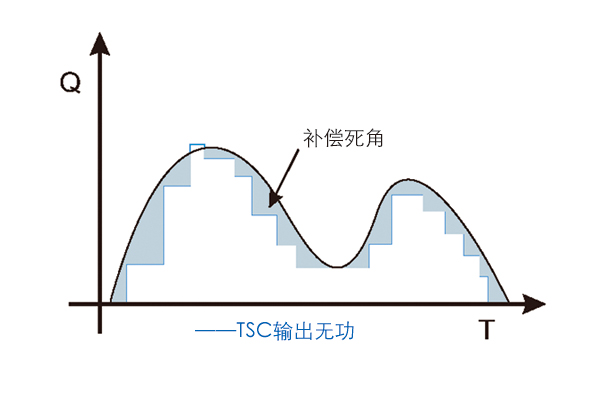

    TSVG dynamic filter compensation device is a new research and development of products with market demands of our company, combined for reactive power generator SVG and TSC dynamic reactive power compensation device of SCR, formed new high-capacity continuous reactive power compensation device TSVG. TSVG is the high-tech product representative in low voltage reactive power compensation , also is a development direction of next generation in reactive power compensation equipment.

    Product features

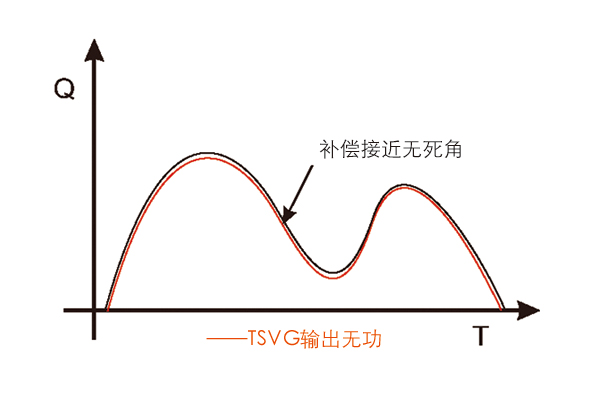

    1. Continuous adjustment: continuous adjust reactive power capacity, realize stepless compensation;
    2. Bidirectional: dynamically continuous regulate bothway reactive power, namely compensate inductive load and capacitive load;
    3. Modular: modular design, beautiful appearance, convenient maintenance;
    4. Fast response:less than 10 ms, can suppress voltage fluctuation and weaken   load power impact, protect electrical equipments;
    5. Low noise: less than 50 db;
    6. Low loss: small loss, less than 1%;
    7. Easy maintenance: small volume, modular design, can separate maintenance, without effect on each other;
    8. Full protection: perfect self-protection system technology, monitoring TSVG parts working condition.

Products Specification

Service

  • Training and Use

    We will supply friendly English operation manual and installation. Customer is warmly welcomed to visit our factory for free training. We can also send engineer to customer’s country to supply training.

  • Guarantee & After-sale Service

    We supply one year warranty under normal use and lifetime technical support.We can provide engineers overseas training.

  • Payment Terms

    1.T/T in advance;

    2.West Union: we can accept small payment(below $3000), but the banking charges shall be paid by the buyer;

    3.L/C is acceptable if the amount is big. Please issue the L/C draft for our confirmation

  • Documents after shipment

    We will send original documents to you by DHL, including Packing List, Commercial Invoice, Sales Confirmation, Bill of Lading, and other certificates as required by customer.
